Name of Commodity 品名 | Specification 规格 | Materials 材质 | SECTION SIZE/MM 截面尺寸/毫米 | Section Area 截面面积 (cm 2) | Rail Length 轨道长度 (m) | Theoretical weight 理论重量 (kg/m) | |||
Height 高度 | Bottom Width 底宽 | Top Width 顶宽 | Waist Thick 腰厚 | ||||||

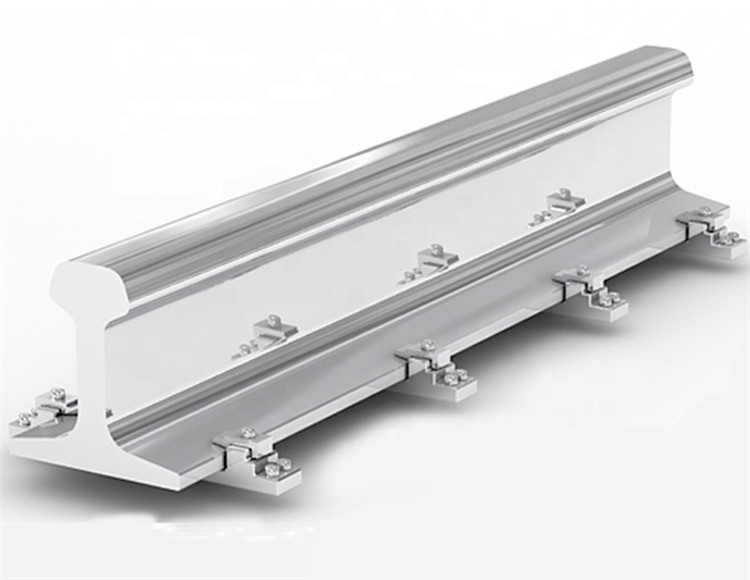

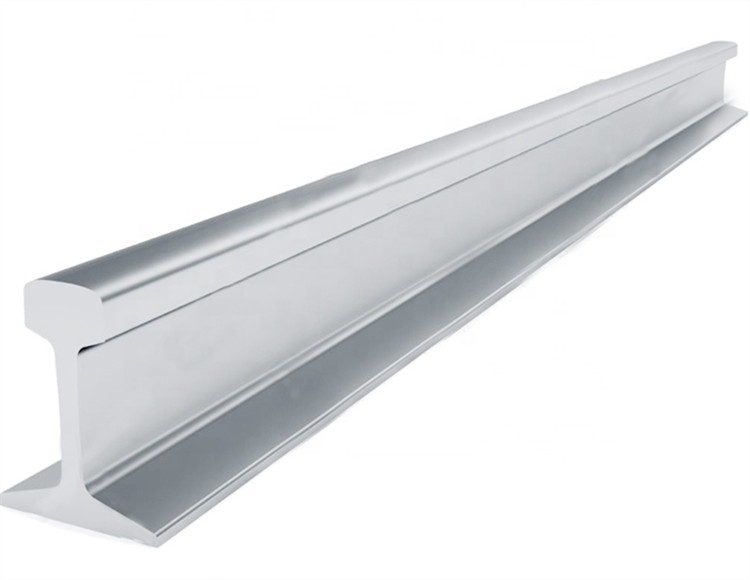

steel rail | 38 | U71Mn/50Mn | 134 | 114 | 68 | 13 | 49.5 | 12.5--25 | 38.733 |
43 | U71Mn/50Mn | 140 | 114 | 70 | 14.5 | 57 | 12.5--25 | 44.653 | |
45 | U71Mn/50Mn | 145 | 126 | 67 | 14.5 | 12.5--25 | 45.546 | ||
50 | U71Mn/50Mn | 152 | 132 | 70 | 15.5 | 65.8 | 12.5--25 | 51.514 | |
60 | U71Mn/50Mn | 176 | 150 | 73 | 16.5 | 9--12.5/25 | |||
crane rail | QU70 | U71Mn | 120 | 120 | 70 | 28 | 67.3 | 12 | 52.8 |
QU80 | U71Mn | 130 | 130 | 80 | 32 | 81.13 | 12 | 63.69 | |
QU100 | U71Mn | 150 | 150 | 100 | 38 | 113.32 | 12 | 88.96 | |
QU120 | U71Mn | 170 | 170 | 120 | 44 | 150.44 | 12 | 118.1 | |
